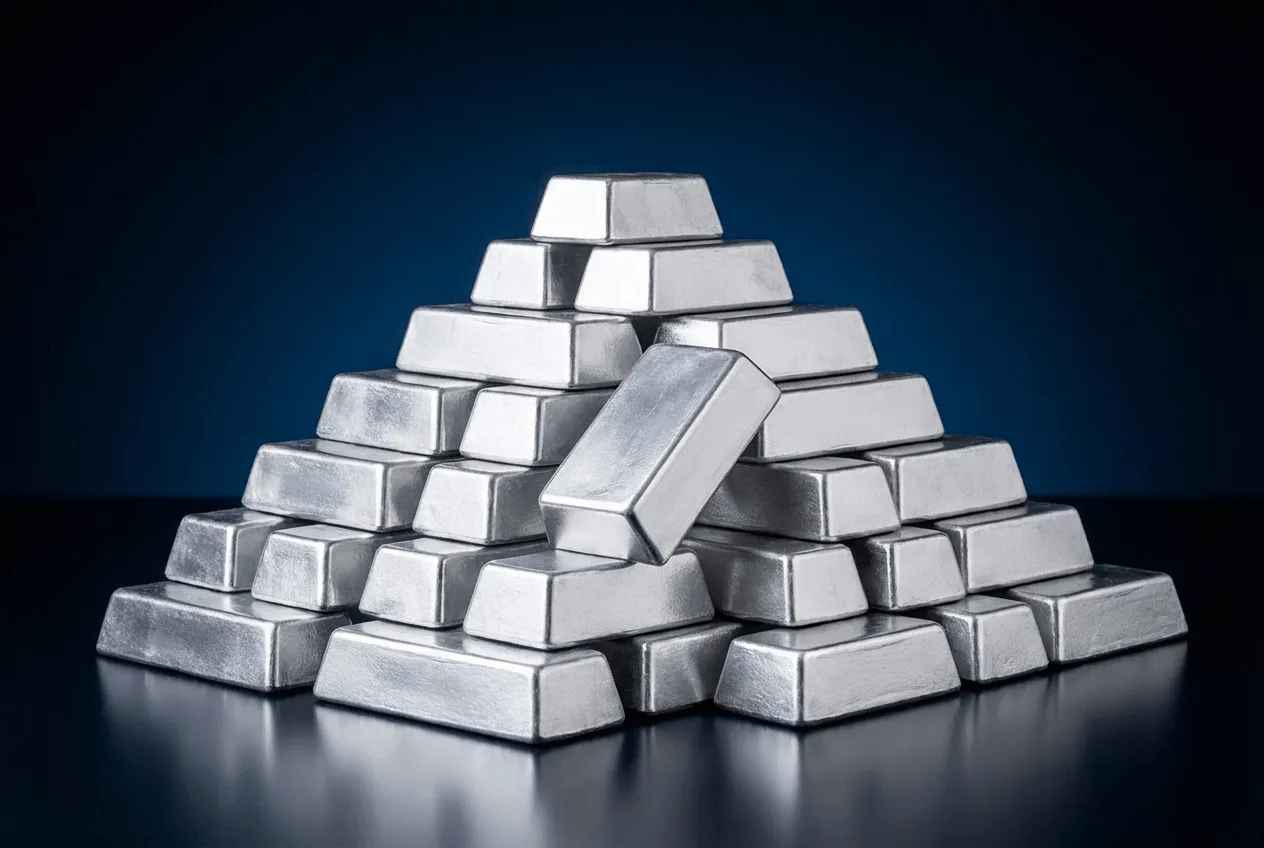

Primary Aluminum Ingot: The Versatile Base Metal
An Aluminum Ingot is a large block of refined aluminum, which serves as the fundamental raw material for subsequent manufacturing processes. These ingots can be categorized into two main types:
- Primary Aluminum Ingots: Produced directly from alumina (Al₂O₃) via the Hall-Héroult process, characterized by high purity (typically 99.7% or higher).
- Alloy Ingots (Secondary): Produced from recycled aluminum scrap or by alloying primary aluminum with elements like Silicon (Si), Copper (Cu), Magnesium (Mg), etc., tailored for specific casting or extrusion applications.
ERST Group supplies both high-purity primary ingots and various standard alloy ingots essential for the automotive, construction, and packaging industries.
Key Applications and Functions
Aluminum is the second most used metal globally, celebrated for its unique combination of properties.
Primary Functions
- Lightweight: Offers an excellent strength-to-weight ratio, critical for transportation sectors.
- Corrosion Resistance: Naturally forms a protective oxide layer that resists rust and corrosion.
- High Conductivity: Excellent conductor of heat and electricity.
- Recyclability: Highly sustainable, requiring significantly less energy to recycle than to produce primarily.
Primary Applications
- Casting: Alloy ingots are melted down to create components for engines, wheels, and structural parts.
- Extrusion: Primary ingots are used to create rods, bars, and customized profiles for construction (windows, frames).
- Rolling: Used to produce thin sheets and foils for packaging, beverage cans, and aircraft skins.
Standard Specifications and Grades
Aluminum ingots are primarily specified by their purity (for primary ingots) or their specific alloy designation (for alloy ingots, often according to AA, EN, or JIS standards). Below is a specification table for the standard Primary Aluminum Ingot (P1020).
Primary Aluminum Ingot Specification (P1020)
| Element | Specification (%) | Primary Use |
|---|---|---|
| Aluminum (Al) | Min 99.70 | Base material for high-purity applications, extrusion, and rolling. |
| Iron (Fe) | Max 0.20 | Controlled impurity. |
| Silicon (Si) | Max 0.10 | Controlled impurity. |
| Copper (Cu) | Max 0.02 | Controlled impurity. |
| Zinc (Zn) | Max 0.03 | Controlled impurity. |
| Other (Each) | Max 0.03 | Trace elements. |
Size and Packaging Solutions
Aluminum ingots are typically standardized in weight and shape for efficient handling and storage.
- Ingot Weight: Commonly supplied as T-bars (500-1000 kg), Sow ingots (300-750 kg), or Standard Ingots (15-25 kg).
- Packaging: Standard 20/25 kg ingots are often stacked and strapped onto wooden or aluminum pallets (typically 1000 kg to 2000 kg per unit) for secure transportation.
